Phân tích chất lượng điện năng – HDPQ Xplorer Plus

(4) Differential Voltage: 512s/c, 16 bit resolution

• 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
• IEC 61000-4-30 Class A Edition 3: 60-1000Vrms, ±0.1 % of Udin, range of 10% – 150% of Udin
• Transients – rms: 0-1414Vpk, ±0.2 % of Udin
• Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5% FS

(4) Current: 512 samples/cycle, 16 bit resolution

• Range (rms) probe dependent, AC/DC, +/- 0.1% reading +/- 0.05% FS
• Transients – Range probe dependent
• Transients – High Speed: Range probe dependent., 10% of Reading, +/- 0.5%FS

Frequency: 10 sec window

• 16-25Hz, 41-69Hz, +/- 0.01Hz

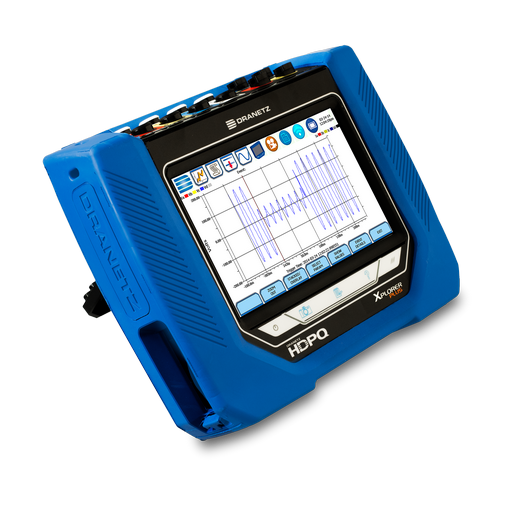

Dranetz HDPQ Xplorer Plus

• Size: (10″w x 8″h x 2.75″d), (25.4cm x 20.3cm x 7.0cm)
• Weight: 4.2lbs, 2kg
• Operating temperature: 0 to 50 deg C ( 32 to 122 deg F)
• Storage temperature: -20 to 55 deg C (-4 to 131 deg F)
• Humidity: 10-90% non condensing

Clock accuracy and resolution

• Internal: +/- 1 sec/day at 25 deg C
• NTP: +/-10 msec
• GPS: +/-1 msec

AC Adapter: 100-240Vac 50/60Hz

Battery capacity and charge time:

• Dranetz HDPQ Xplorer Plus: 2.5 hours run time on full charge, 3 hours charge time

Memory size: 4GB

Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean

Communications

Ethernet, 802.11 b/g/n Wireless (available without Wi-Fi as a special order)
USB On the Go
Bluetooth (optional)
VNC remote control

Ease of Use Features

Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
AnswerModules®– Sag/Dip directivity, PF Cap, Motor
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.
